Unikon 230
Overview
Fully Automatic Biochemistry Analyzer
Fully Automatic Biochemistry Analyzer
- Fully Automated Random access discrete Biochemistry Analyzer for lower to higher sample work load
- Onboard 24 hours refrigeration facility for Reagent/ Sample compartment
- Multifunctional precision Raegent/Sample probe with Liquid Level detection facility
- STAT sample can be loaded anywhere on Sample corousal
- Durable ceramic piston for long lasting accuracy of aspiration & dispensing function
- Long life of Filters because of Completely closed optical system
- Easy Lamp changing facility that helps in reducing the down time of instrument
- 40 Reagent (including R1 & R2) and 40 samples can be loaded at a time
- 44 semi-permanent, individually placed Pyrex cuvettes with onboard analysis
- Absorbance Linearity up to 4.000 Abs with resolution up to 0.0001 Abs
- Minimum reaction volume is just 150 µl
- Reagent Volume range is 20 to 300 µl in step of 1.00 µl & sample volume in range of 2 to 30 µl in step of 0.1µl
- 8 narrow bandwidth interferance filters in static postion

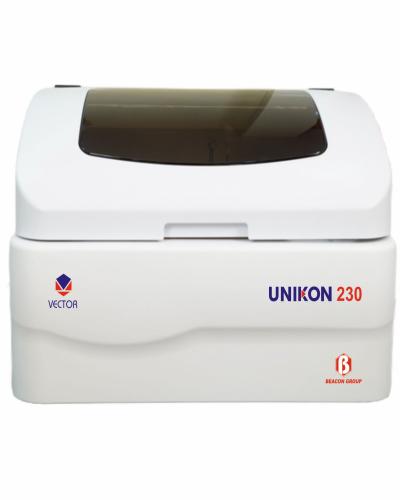

UNIKON 230 is a Random Access, Discrete, Fully Automated Biochemistry Analyzer. It is designed to perform Biochemistry Analysis from Whole Blood, Serum, Plasma or Urine sample with Higher speed and greater accuracy.
Random Access means any Biochemical Test in any combination can be run simultaneously on UNIKON 230. This facility is available because it has multiple reaction cuvette because of which it is called as Discrete Analyser.
The UNIKON 230 offers a Speed of Testing of up to 200 Biochemical tests per hour, ensuring efficient and high-speed processing for laboratory diagnostics.
The UNIKON 230 can accommodate 40 samples at a time.
UNIKON 230 system provides 40 reagent positions, ensuring flexibility for a broad range of tests and assays. The Reagent & Sample compartment of UNIKON 230 is equipped with 24 Hours Cooling Facility that ensures longer onboard Stability of Reagents.
44 Reaction Cuvettes are provided with UNIKON 230.
UNIKON 230 has onboard Laundry system comprising of 2step 6 stop washing system and scrubber which ensures uniform washing and drying of reaction cuvettes to prevent contamination and carry over.
It consumes 7 to 8 Liters of water in an hour. The water quality is TDS >5.
UNIKON 230 is having multifunctional single Probe.
The probe is internally & externally polished to resist carry over, it also undergoes washing using waterfall washing mechanism to prevent carryover and contamination. The probe is equipped with Liquid Level sensing, Collision Protection and auto depth adjustment which prevent the damage of probe and also helps in effective inventory management.
For Reagents the volume is 20 to 300 µl which can be changed in 1.0 µl volume and same for sample is 2 to 30 µl that can be changed in 0.1 µl volume.
UNIKON 230 operates with a minimum reaction volume of 150 µL, reducing reagent consumption and ensuring efficient sample utilization.
Yes, UNIKON 230 can perform HbA1c testing, to support comprehensive clinical diagnostics.
UNIKON 230 is an automated analyser equipped with advanced liquid detection probes for aspiration and dispensing. The working of this probe is guided by ceramic piston syringe arrangements which is long lasting and corrosion free material, there by it ensures long lasting error free analysis. Moreover, it is also having Teflon coated mixing probe that provides homogeneous mixing of reagent and sample.
The instrument maintains an extremely low carryover rate of 0.01%, minimizing cross-contamination and ensuring reliable test results.
UNIKON 230 is designed with durable components, unique fully closed integrated optical system that prevents most sensitive component, like filters of photometer from aging effect due to dust, moisture, heat, or humidity. It has automated cleaning cycles and cuvette integrity check function before analysis, that reduces downtime and increases instrument working life span.
UNIKON 230 has inbuilt QC facilities like L-J chart using Westgard rules. The intelligent software of UNIKON 230 provides real time monitoring, visual data representation automated report generation for faster and more informed diagnostic decision.
We offer > 35 Ready to Use Stable Liquid dedicated system pack reagents, Calibrators, and controls to support consumable requirements for operating our UNIKON 230.
